Peavey Non-Powered Mixers PV 6 BT

PV6 BT
Equipped with Peavey's reference-quality mic preamps that spec in at an incredible 0.0007% THD, the PV 6
BT mixer is excellent for live or recording applications. The PV 6 BT mixer includes 2 channels of referencequality mic preamps, 2 direct outputs for recording, a stereo input channel, and a dedicated media channel, and
Bluetooth® wireless input and high quality digital effects. Other features include 48 volt phantom power, dual
selectable control room outputs, built-in stereo compressor, an on-board selectable high impedance preamp
equalized for guitar, 3-band EQ per channel with bypass, signal/clip indicators, and a stereo master LED meter
bridge. Features such as Bluetooth® allow seamless connection to almost any "smart" device. Direct outs on
the mic channels allow easy connection to most DAW interfaces for recording. In addition, the PV 6 BT mixer
can stream the stereo mix directly to and from a PC via USB. The USB to Control Room switch allows for
direct monitoring when recording with a DAW, such as the included REAPER software. These mixers also
feature a tablet cradle to hold a smart device for convenient display and easy operation.
FEATURES
New rugged, slim, low-profile console design
Convenient tablet cradle
2 combination XLR/1/4" low noise mic preamps
3-band EQ on all channels
2 channels of Peavey's exclusive MidMorph® EQ
EQ bypass per channel
LED clip and signal present indication
2 Channels of direct out
Stereo pan control per channel
Channel 3/4 stereo 1/4" or 3.5mm input channel
Channel 5/6 stereo 1/4", RCA, or Bluetooth input channel
Dual selectable control room outputs
1/4" main stereo outputs
High quality master LED meter bridge
Built-in master compression
Studio quality headphone output
Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
Stereo USB-B streaming audio in and out, 16-bit, up to 48kHz sample rates
Built-in Digital Effects
Peavey's exclusive on-board Hi Z guitar input
Global 48V phantom power
Product Dimensions: 7.25" wide x 11.4" deep x 2.1875" high (18.42 cm x 28.96 cm x 5.56 cm)
Weight Packed: 5.29 lb(2.4 kg)

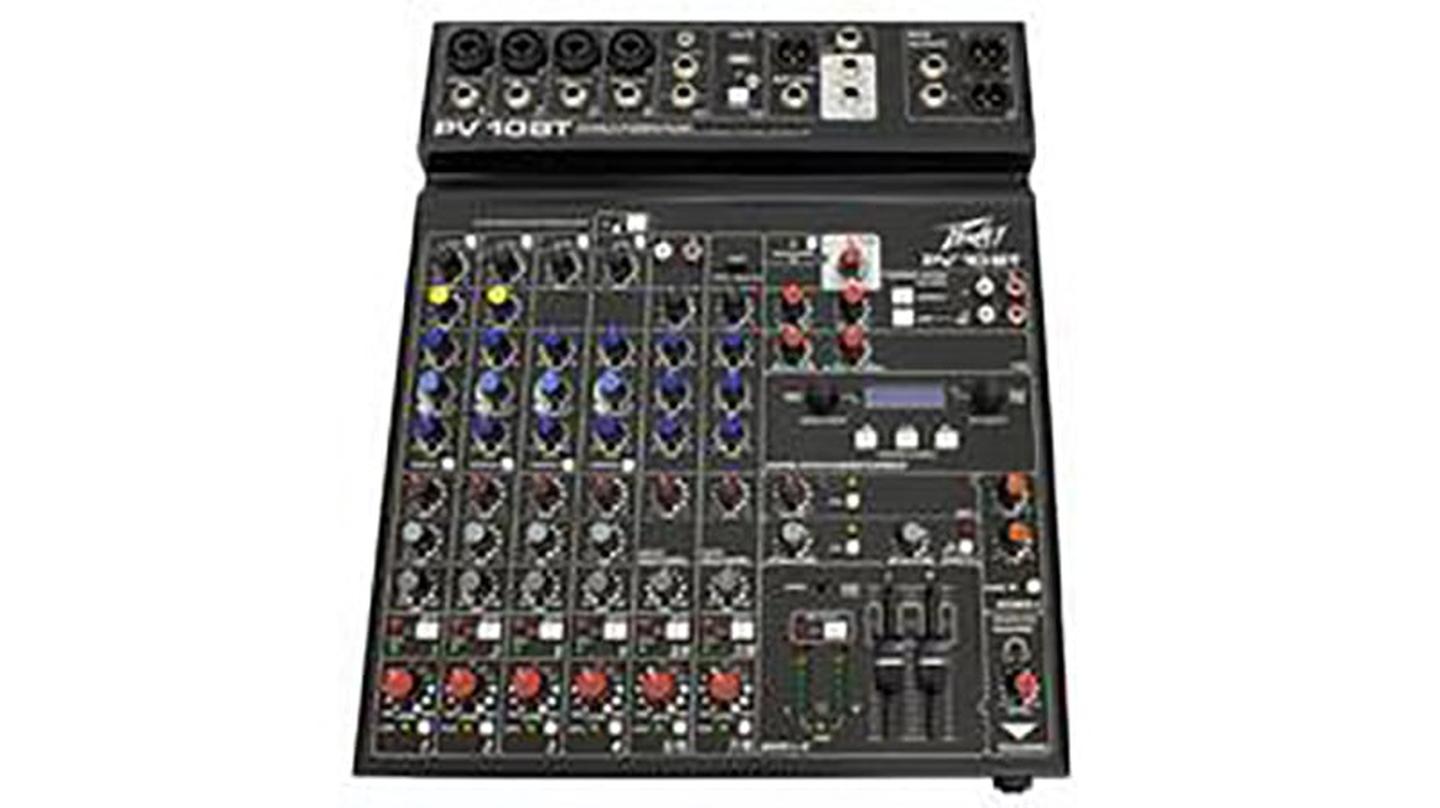

PV10 BT
Introducing the next level in world-class non-powered mixer performance. The all new PV®
series mixing consoles include Peavey's reference-quality mic preamps that spec in at an
incredible 0.0007% THD, making the PV series mixers excellent for live or recording
applications.
The PV 10 BT includes 4 channels of reference quality mic preamps, 4 direct outputs for
recording, a stereo channel, media channel with Bluetooth® wireless input, high quality digital
effects with LCD display, streaming USB out, MP3 playback via USB A input, Peavey's
exclusive Kosmos audio enhancement, 48-volt phantom power, dual selectable control room
outputs, 2 channels of compression, one channel of on board selectable guitar preamp, 3-band
EQ per channel with bypass, channel mute buttons, aux send, signal clip indicators, and a stereo
master LED meter bridge. This amazingly versatile mixer is at home both in the studio as well as
live applications.
Modern features such as Bluetooth allow seamless connection to almost any "smart" device. 4
direct outs allow easy connection to most DAW interfaces for recording. In addition, the PV 10
BT can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with
MP3 files on it into the USB A port and use the LCD to select and play back music. The PV
series Solo feature allows the user to listen to individual channels via headphone or control room
outputs, and the EQ bypass allows the user to hear and compare the EQ'd signal to the original
signal with the push of a button. 2 channels of compression keep signals with difficult levels
under control, and Peavey's exclusive guitar shape adjusts the EQ and preamp specifically for
guitar. Hi pass filters on every channel remove unwanted rumble and noise, and balanced AUX
and Master outputs ensure a clean noise-free signal to your powered speakers or power amplifier.
FEATURES
New rugged, slim, low-profile console design
Convenient tablet cradle
4 combination XLR/1/4" low noise mic preamps
Selectable Hi Pass Filter on first 4 inputs
3-band EQ on all channels
4 channels of Peavey's exclusive MidMorph® EQ
EQ bypass per channel
2 channels of built-in compression
Individual channel mutes
Individual Listen/Solo function
LED clip and signal present indication
4 Channels of direct out
Stereo pan control per channel
Channel 5/6 stereo 1/4", RCA, or 3.5mm input channel
Dual selectable control room outputs
One pre-fader AUX send
KOSMOS bass and treble enhancement
Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
Precision 60 mm faders on master
High quality master LED meter bridge
Master mic mute
Studio quality headphone output
Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
On-board USB-A MP3 and WAV playback
Stereo USB-B streaming audio in and out, 16-bit, up to 48kHz sample rates
Built-in Digital Effects with LCD Display
Peavey's exclusive on-board Hi Z guitar input
Global 48V phantom power
Product Dimensions: 12.75" wide x 15.1" deep x 2.1875" high (32.39 cm x 38.35 cm x 5.56 cm)
Weight Packed: 9.48 lb(4.3 kg)
