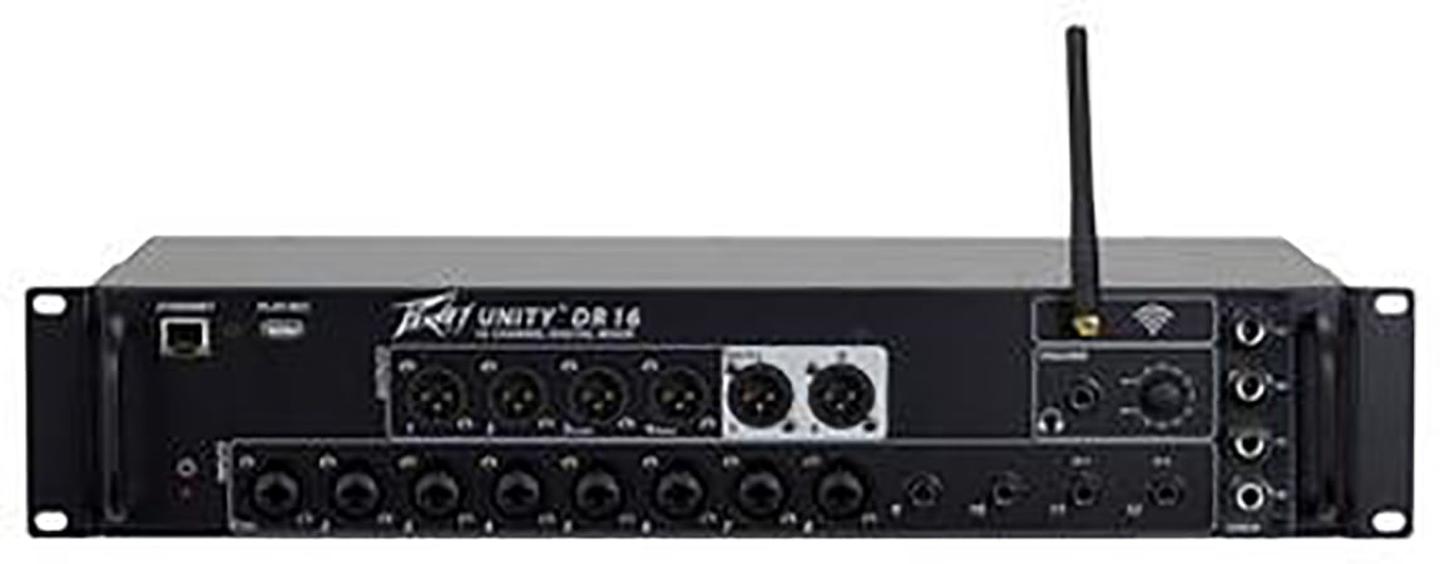

Peavey Unity DR16 Rack Digital Mixer

Every day, musicians strive to bring people together through live performance. In helping artists
and engineers achieve their ideal sound, Peavey Electronics endeavors to meet every need with
the new UNITY DR16, the first entry in the UNITY Series of digital mixer products and the first
of its kind to be fully expandable. Whether the user is running front of house or their own
monitor mix, the UNITY DR16 is a highly adaptable and compatible solution that delivers
professional-grade sound.
In its standard configuration, the UNITY DR16 offers 16 inputs, with eight of those inputs
boasting Peavey's world class Silencer mic preamps. The inputs have a Priority Ducker as well
as the ability to group MUTE and SOLO, and all of the input EQs have the Classic Peavey MidMorph EQ, which enables the user to easily tune in optimal tone. All of these features, plus the
two Feedback Eliminators that are assignable to mic input channels and separate Feedback
Eliminators on the Auxes and Mains, make the UNITY DR16 a top-of-the-line pick for its
category.
With 4 effects processors and highly advanced reverb algorithms, the UNITY DR16's onboard
effects are more than enough to meet the user's needs. Don't want to be tied down to the mixing
board? The UNITY DR16 features a unique mixed network configuration of up to 10 Ethernet
and 4 Wi-Fi connections at the same time! The user can update firmware over these connections
for even more convenience. Wi-Fi connectivity also allows the user to adjust the console from
the stage or live room via the Peavey UNITY Mix app iOS app (Android coming soon) to get the
sound just right. Also available is the UNITY Mix desktop app, which is available for PC.
All UNITY DR16 outputs feature a parametric EQ, a 31-band graphic EQ in cascade and an
automatic feedback eliminator. The mixer's advanced monitoring capabilities allow selectable
monitor sources, as well as the ability to leverage Aux 3/4 as stereo or mono monitor sends. The
UNITY DR16 features real solos on the monitor for all inputs, Aux, and Efx (all solos go to the
monitor with the levels assigned in their respective busses). SOLO even applies to the DCA, of
which there's an abundant 4 on board. If headroom is a concern, the Clip Limiter ensures no
clipping even when exceeding the input level or internal process gain levels.
An Extension Card provides the option to make input channels 13 through 16 analog
unbalanced/balanced inputs, S/PDIF, or Dante, with other options to come. With the Expansion
Card, the UNITY DR16 also offers unprecedented expansion and extension by expanding the
mixer's inputs through combining multiple DR16s to add 12 input channels for every connected
DR16.


System Requirements for Unity MIX for PC:
OS: WinXP SP3 or higher (32-bit/64-bit supported)
CPU: Pentium 4 1.5GHz / Athlon XP 1500+ or higher
Memory: 1GB RAM
Hard Drive: 50MB of free space
SW: .Net Framework 4

FEATURES
16 Inputs (8 Combo inputs with Phantom Power, 4 line in, 4 analog via expansion card)
8 Silencer mic preamps
Classic Peavey Mid-Morph EQ available on input EQs
2 x Feedback Eliminators assignable to the mic inputs channels
Post mute for sending input only to monitor bus
Hi-Z inputs on channel 11/12 EFX
Four effects processors (Reverb, Delay, Modulation and Room)
Modulation effects feature Chorus, Flanger, Phaser and combination effects
Advanced reverb algorithms
Parametric EQ + 31 bands Graphic EQ in cascade
High Pass/Low Pass filters up to 24dB/oct
Feedback Eliminator
Dynamic Loudness
RMS compressor
Parametric EQ + 31 bands Graphic EQ in cascade
High Pass/Low Pass filters up to 24dB/oct
Feedback Eliminator
Aux 3/4 assignable as monitors
4 Aux Buses
Real solos on Monitor for inputs/Aux and Efx [solos go to monitor with the levels assigned to the
related busses
L/R to assignable Aux3/4
Mono L+R assignable to Aux4
Mixed WiFi/Ethernet network configuration
Up to 10 Ethernet and 4 WiFi concurrent connections
Firmware update via Ethernet connection
Clip Limiter on all Input/Main/Aux paths allowing up to 12dB Headroom with dynamic control
Priority Ducker on 16 channels
MUTE Groups
SOLO Groups
Real-time Analyzer (RTA)
4 DCAs
USB 2-track recording and playback
Interactive control iOS/Android/PC/Mac app
Allows input channels 13-16 to be either 4 analog unbalanced/balanced Inputs, S/ PDIF, or
Dante...and much more to come
Expansion card converts 16 Channel mixer to 24 Channels
Weight Packed: 8.82 lb(4 kg)
